3. Coolsculpting Body Shape Machine

Weight loss lipo freeze slimming cryolipolysis machine fat reduction

CTL26

Weight loss lipo freeze slimming cryolipolysis machine is multifunctional with cryolipolysis+lipolaser+cavitation,which is aim to help people make the treatment in belly,buttock,abdomen and other fat areas finally get the purpose of body slimming.
Send Inquiry
Share to:

Weight loss lipo freeze slimming cryolipolysis machine

Structural Parameters

Model:CTL26

Working Heads: cryolipolysis+Lipolaser+Cavitation+RF

Cryo temperature:5--16C.0-100KPa

Feature: Lipolaser,Mitsubishi laser,six pads,104 diodes

Cryolipolysis (Fat Freezing)

Through cooling technology, triglyceride in fats will be converted into solid in particular low temperature. Fat cells premature aging and death.Through the normal metabolic processes to decrease the fat layer and achieve the purpose of partially melting fat.

Lipolaser

Lipolaser is a latest technology for weight loss.Laser is irradiated to parts of the body, producing photochemical reactions, then through body’s metabolism and energy consumption to reduce the excessive fat.

RF Cavitation

Cavitation ultilizing intense sound wave (reaches 40KHz) causes violent vibration within fatty cell.Cellulite is bombarded with strong force, causing fatty acid decomposition and enhancing blood circulation. Finally fat acid is discharged outside the body through lymphatic drainage,thus achieving the weight lost and the lush body beautification effects.

RF system uses 5MHz  frequency, which can make cells produced a strong resonance of water molecules rotate and produce heat by the friction. Thereby heat up to the collagen and fat cells for the purpose of heating.

Working principle

lipo freeze slimming cryolipolysis machine through advanced cooling technology to selectively target fat bulges,triglyceride in fats will be converted into solid in particular low temperature.The cryo removal machine is aimed to help fat freeze,after treatment the cryo machine finally help to reduce the fat cells of 2-3cm.Fat cells premature aging and death through a gradual process that does not harm the surrounding tissues,reduce unwanted fat,when fat cells are exposed to precise cooling,they trigger a process of natural remove that gradually reduces the thickness of the fat layer.And the fat cells in the treated area gently dissolved through the body's mormal metabolism process to dissolve unwated fat and achieve the purpose of partially melting fat.

For those who eat a reasonable diet and exercise regularly but still can't get rid of the local fat cells,which is a godsend.For fat more populated parts or fat smaller parts,such as love muscle (above the waist hip on both sides of the relaxation of dewlap),belly and back fat,the frozen de-fatting can create stunning effect.

How to make the treatment by  lipo freeze slimming cryolipolysis machine?

Using a non-invasive transmitter to transmit the precise controlled cold wave to the active site, targeting and eliminating the fat cells in specific parts of the body.The whole process is about 1-2 hours.

Application

1.Inches loss

2.Skin tightening ,improve skin elasticity

3.Cellulite reduction, weight loss

4.Shape body contour

Functions of  lipo freeze slimming cryolipolysis machine:

1. Elimination of refractory honeycomb tissue obesity

2. Fat transfer,tighten skin

3. Effectively remove the orange peel tissue and eliminate edema

4. Dissolve fat and eliminate fat, and shape the perfect curve

5. Heat the frozen mode,frostbite and accelerate weight loss

6. Lymphatic drainage, promoting metabolism & blood circulation

7. Safe and high effect and Zero rebound

8. Non-invasive and painless,fat transfer and The most popular in Europe and America,coolsculption

lipo freeze slimming cryolipolysis machine parameter

Typecryolipolysis machine
ModelCTL26

Voltage

220v/110v; 50Hz-60Hz

Mitsubishi classification

Electrical Class II, Type B applied part

Pads

6 pcs,4 big pads and 2 small pads

Laser type

low intensity diode laser

Laser source

Mitsubishi diode laser ML101J27

Mitsubishi Wave length

dual wavelength, 650nm and 980nm

Laser energy

130mW~350mW (pulse)

Quantities of lamps

104 pcs

Mitsubishi Ingress Rating

IPXO

Lipolaser cooling requirements

Air cooled

Cooling device output temperature

5 degree~ -16℃ degree



Cooling device output pressure

0-100Kpa

Cooling liquid

pure water, with 4.5 L

Default working time

0-60 minutes

Power consumption

≤400W

Cavitation

35-40KHz

RF frequency

5MHz

Weight

29 NW / 47 GW

Package Size

73.5*62*63.5cm

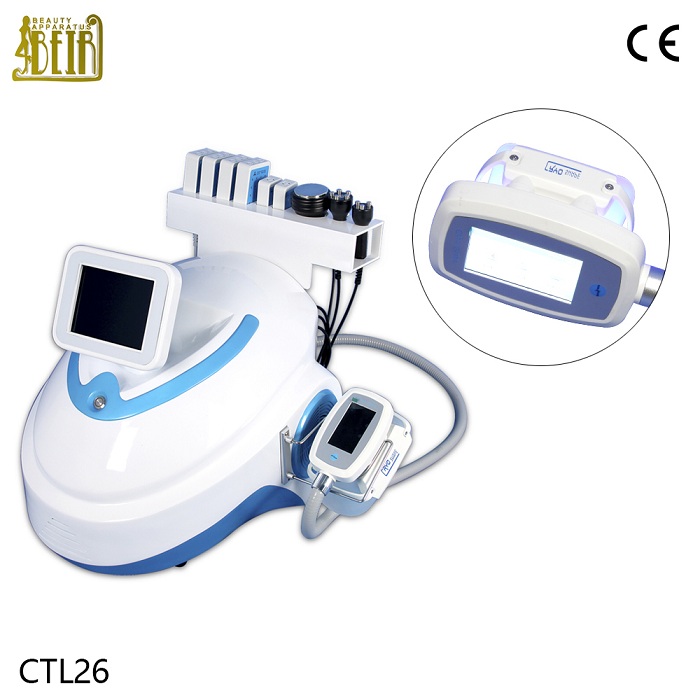

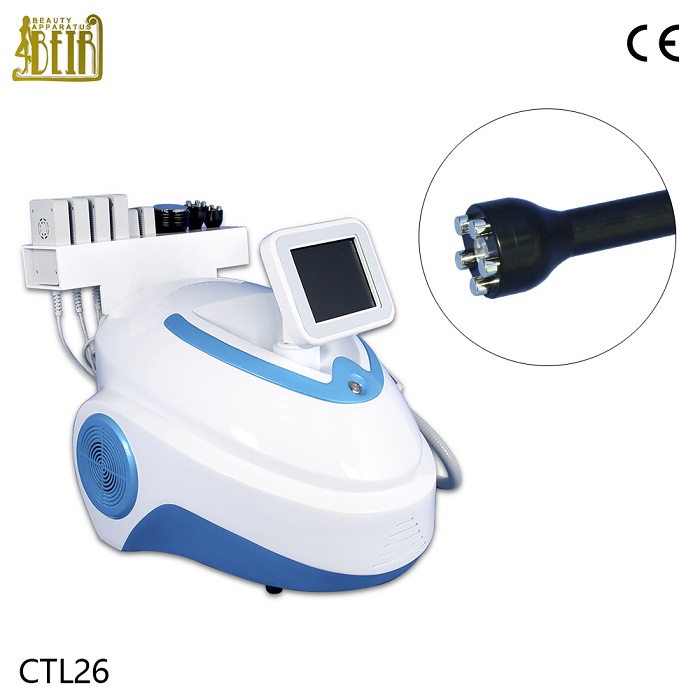

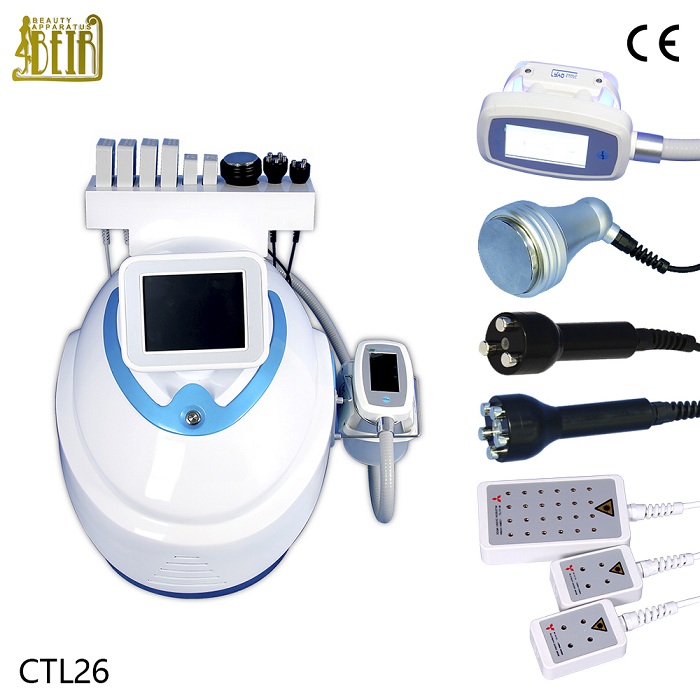

lipo freeze slimming cryolipolysis machine show

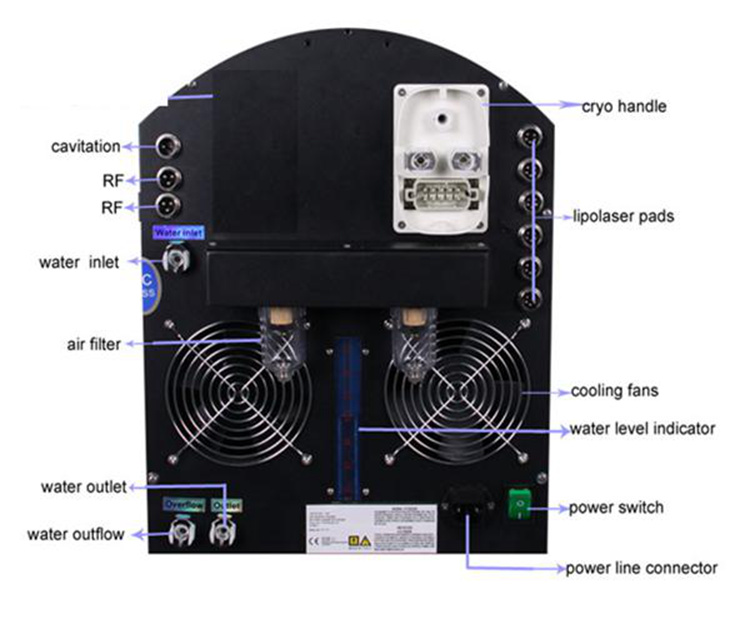

lipo freeze slimming cryolipolysis machine details image

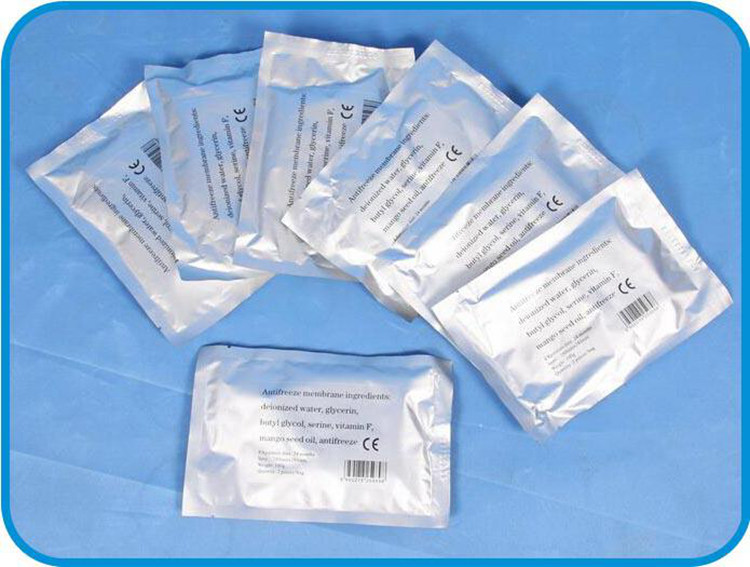

Skin Antifreeze Membrane

Qualified antifreeze should be used during the treatment, to avoid frostbite. When the packaging is opened, please use the membrane within 3 days.

brg 80 4s 1.jpg


Frequently Asked Questions (FAQ)

1. How cold is it in freezing fat machine? Is it painful?

It's a litle cold when make treatment,through machine to make controllable freezing treatment to eliminate the aim areas fat. At the begining,you will feel a bit cold but with the treatment area numb, this sensation subsides within 5-10 minutes, as most of the fat freezing machine through the vacuum by put the fat cells into the cooler cup and you may feel some degree of traction and slight squeezing.


2.whethet does it need recovery period?

Treatment is completely non-invasive and patients can usually restore normal activities after treatment.Most of time,patients can also continue to work after treatment.


3.When can i get the effect?

After treatment you can get the effect,but the most obvious effect will appear after 2-3 months.After 4-6 months of treatment,the body will eliminate continuously the fat cells。


4. Where is the fat? Will the effect be permanent?

When the fat cells in the treated areas are frozen,which will be apoptotic naturally treated and cleared by the body.Once the fat cells were eliminated,which will disappear forever
